DOORS

WINDOWS

VENTILATORS

• MAIN ENTRANCE door shall be provided with First class TEAK WOOD, frames and shutter switch “GODREJ Night Latch” or Lakshmi lock, brass hinges and Lacquered brass handles and Eye piece will be provided.
• ALL OTHER DOORS shall be provided with TEAK WOOD frames and 12mm thick water proof inserts or solid core flush door shutters, OST or skin door.
• BATHROOM DOORS shall be provided with First Class UPVC heavy doors with UPVC Fittings.
• WINDOW frames and shutters shall be of UPVC framed, glazed shutters with MS grills.
• VENTILATORS shall be provided UPVC framed, Glazed louvers.

LIVING

DINING

BED ROOMS

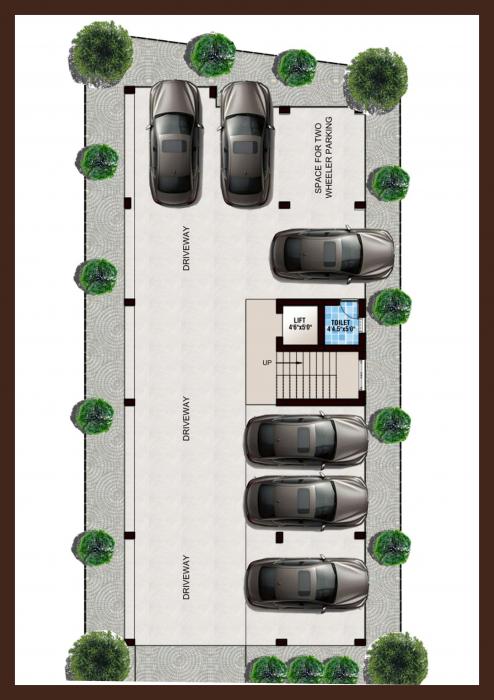

CAR PARKING

• Living / Drawing, Dining, Kitchen and Other Bed Rooms flooring shall be provided with 2’0” x 2’0” Vitrified tiles of standard brands ( Basic cost of tile at Rs. 42.00 / Sq. Ft. )
• Utility and Other Balcony Flooring shall be provided with 1’0” X 1’0” Ceramic tiles ( Basic cost of tile at Rs. 35.00 / Sq. Ft. )
• Car Parking Flooring - Heavy Duty vetrified / Designed Cement Tile Eurocon or equivalent brand ( Basic cost of tile at Rs. 35.00 / Sq. Ft. )

FLOORING

PLATFORM

SINK

LOFT

SHELVES

• Kitchen floorings shall be provided with 2’0” x 2’0” Vitrified tiles of standard brands ( Basic cost of tile at Rs. 42.00 / Sq. Ft.).
• Kitchen platform shall be of high grade polished Black GRANITE top (Basic cost of Granite at Rs. 120.00 / Sq. Ft. ).
• Dado up to 4’ 0” height/ Lintel level above the platform ( Basic cost of tile at Rs. 30.00 / Sq. Ft. ).
• Stainless Steel kitchen sink shall be provided with out drain board.
• LOFT & SHELVES shall be provided as per drawings.
• Suitable openings for exhaust fans will be provided.
• Provision for RO-Purifier, With Closed Angle Cork will be Provided

FLOORING

WALLS

• Anti skid Ceramic tiles flooring, ( Basic cost of tile Rs. 38.00 / Sq. Ft. )
• Ceramic tile dado for about 7’ 0” height from the floor. ( Basic cost of tile at Rs. 36.00 / Sq. Ft.)
• Suitable openings for exhaust fans shall be provided.
• Water proofing to all toilets By Water Proofing Chemicals.

FLOORING

RAILING

• Steps and landing will provided with Granite ( Basic cost of Granite at Rs. 100.00 / Sq. Ft.)
• Hand railing will be provided with Stainless steel material.

EWC

IWC

WASH BASIN

• EWC, Wash basin shall be provided with PARRYWARE brand. For attached bed room toilets
• IWC shall be provided with PARRYWARE brand for common toilets
• Wash basin shall be provided with PARRYWARE brand either in Dining or in common toilet
• Low level flushing cisterns of PVC or FRP fittings, plastic seat cover for EWC, Deluxe CP brass fittings and other suitable fixture.

SUMP

OHT

SEPTIC TANK

BATH ROOMS

KITCHEN SINK

PARKING AREA

• One SUMP of adequate capacity individually for receiving Metro / Panchayath water as and when CMWSSB / PANCHAYATH water supply becomes available to the complex.
• One OVER HEAD TANK of adequate capacity shall be provided at the terrace of the building (to serve all the Flats) with Two Pipeline Provision for pumping water from captive source ( bore well ) and water from the ground sump.
• SEPTIC TANK of adequate capacity shall be Provided
• A Tap in the kitchen for water supply from over head tank. Taps shall be provided to supply Ground water (bore water) / Sump water to bath, toilet and kitchen through over head tank(s).
• 2 way Tap connections shall be provided in bathrooms with hygiene faucet with Overhead shower & Hot and cold water provision.
• Concealed plumbing arrangements, with CPVC pipe line of slow guard make for hot water pipe line.
• For All Internal plumbing lines CPVC pipes and for External plumbing lines First class PVC pipes of Finolex or Eq. brand are used.
• All PLUMBING fittings shall be provided with PARRYWARE or Eq. brand.
